Liquid Ice Generators

North Star offers efficient and dependable seawater liquid ice makers. Our liquid ice makers offer a number of benefits you can’t find in other slurry ice machines.

Equipment Features

Ice makers used for seafood

Reliable

North Star delivers a dependable generator that produces seawater liquid ice using proven technology. All units are constructed to 250 PSIG/10.3 bar working pressure ASME code with inspection and test certificates furnished.

Minimum salinity

Our liquid ice generators make seawater liquid ice with a minimum salinity of 2.5%, allowing North Star to apply seawater directly to the ice generator freezing surface. Other liquid ice makers require 3.5% salinity, requiring a brine make-up tank to be added to the system.

Meets all food processing standards

North Star evaporator and water path components are stainless steel—the first and best choice for food processing.

Compact

The smallest footprint with the largest ice capacity in the industry.

Pumpable ice

North Star liquid ice can be pumped anywhere you need it using small diameter PVC piping.

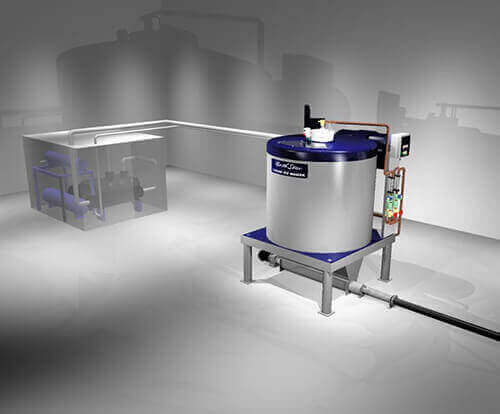

Liquid ice maker

Versatile

Designed for shipboard or land-based applications. Ice discharges to progressive cavity pump or mixing/storage tank (by others). Integrated control panel operates all system components.

Flexible

Can be operated with either ammonia or halocarbon refrigeration systems. Multiple refrigeration units are not required.

Energy Efficient

Protected with high R-value polyurethane insulation and reinforced fiberglass exterior.

Lifetime warranty

Backed by the best warranty in the business – North Star’s lifetime evaporator warranty.

Specifications

North Star liquid ice makers are available in five models ranging in capacity from 18.6 to 158 tons (16.9 to 143 MT) of liquid ice per 24 hours (based on an ice slurry of 25% ice and 75% water). All North Star liquid ice makers are backed by North Star’s lifetime evaporator warranty.

  • Model 10 SS

    Ice Content Capacity

    4.6 T
    4.2 MT

    Total Liquid Ice Capacity

    18.6 T
    16.9 MT

  • Model 20 SS

    Ice Content Capacity

    11.2 T
    10.2 MT

    Total Liquid Ice Capacity

    45.1 T
    40.9 MT

  • Model 40 SS

    Ice Content Capacity

    19.0 T
    17.2 MT

    Total Liquid Ice Capacity

    75.6 T
    68.6 MT

  • Model 60 SS

    Ice Content Capacity

    28.4 T
    25.8 MT

    Total Liquid Ice Capacity

    113.8 T
    103.2 MT

  • Model 90 SS

    Ice Content Capacity

    39.5 T
    35.8 MT

    Total Liquid Ice Capacity

    158.0 T
    143.3 MT

*Capacity in US tons (T) and metric tons (MT) of ice slurry with 25% ice and 75% water per 24 hours based on –22° F (-30° C) evaporator temperature, halocarbon refrigerant, 34° F (1° C) seawater supply temperature, and 3.5% salt content. For other requirements and conditions consult North Star. Specifications are subject to change without notice.

Helpful Technical Information


Use the Capacity Calculator below to size the correct ice maker for your project. Download helpful brochures, specification sheets, and other technical data in our Resources Library.
