Stainless Steel

Available in three configurations, all North Star stainless steel flake ice makers feature a solid stainless steel freezing surface and a lifetime evaporator warranty to ensure their durability and long life.

Stainless steel components throughout the machine meet demanding international food safety and sanitation requirements. Long-lasting and corrosion-resistant, stainless steel has long been recognized as the best material for all types of food processing equipment, including ice makers.

North Star stainless steel ice makers produce top quality, sub-cooled flake ice for fast, efficient product cooling, allowing perishable food processors to maintain their cold chain and extend the shelf life of their products.

Equipment Features

Flake ice maker

North Star offers three configurations of stainless steel flake ice makers that meet ASME Pressure Vessel Code standards.

Find the right model of North Star flake ice maker for your application using this chart or our Capacity Calculator.

Solid stainless steel freezing surface

  • Under normal operating conditions, the stainless steel freezing surface will not chip, flake, pit, rust or corrode like chrome plated, aluminum, or some other freezing surfaces
  • Long-lasting
  • Durable
  • Easy to clean

Stainless steel components

  • The smart choice for food safety and sanitation
  • Will not corrode under normal operating conditions
  • Low maintenance
  • Simple shut down and start up each season
  • Compatible with most plant sanitation methods with proper rinsing

Flake ice maker delivery

Makes sub-cooled flake ice

  • The best type of ice for food applications
  • Superior surface area coverage for faster, more efficient cooling
  • Flat shape will not harm perishable products
  • Free-flowing, easy to move and store
  • Blends easily with other foods without damaging mixing equipment

Lifetime evaporator warranty

  • Dependable and built to last
  • The best in the industry

Specifications

Three configurations of stainless steel ice makers offer the advantage of a solid stainless steel freezing surface and different combinations of stainless steel components to fit your requirements. North Star stainless steel ice makers also meet ASME Pressure Vessel Code standards. Find the right model of North Star flake ice maker for your application using the charts below or our Capacity Calculator.

  • Model 10

    Capacity

    4.6 T
    4.2 MT

    Height

    46 in
    1168 mm

    Width

    32 in
    813 mm

    Length

    48 in
    ​1219 mm

  • Model 20

    Capacity

    11.5 T
    10.4 MT

    Height

    51 in
    1295 mm

    Width

    56 in
    1422 mm

    Length

    83 in
    ​2108 mm

  • Model 40

    Capacity

    19.3 T
    17.6 MT

    Height

    75 in
    1905 mm

    Width

    56 in
    1422 mm

    Length

    83 in
    ​2108 mm

  • Model 60

    Capacity

    28.9 T
    26.5 MT

    Height

    81 in
    2057 mm

    Width

    76 in
    1930 mm

    Length

    107 in
    ​2718 mm

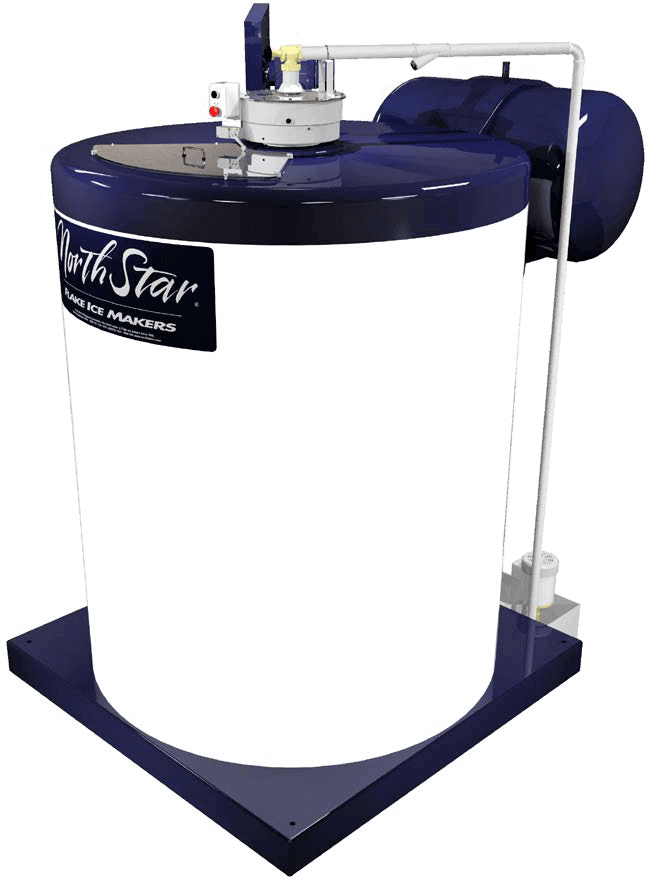

  • Model 90

    Capacity

    40.3 T
    37.0 MT

    Height

    105 in
    2667 mm

    Width

    76 in
    1930 mm

    Length

    109 in
    ​2769 mm

*Capacity in US tons (T) and metric tons (MT) of ice per 24 hours based on -25ºF (-32ºC) evaporator temperature, ammonia refrigerant, 1.5mm ice thickness, and 60° F (16° C) water supply temperatures. For other requirements and conditions consult North Star. Specifications subject to change without notice.

** Overall height requirements vary upon installation. Contact North Star for more information.

Helpful Technical Information


Use the Capacity Calculator below to size the correct ice maker for your project. Download helpful brochures, specification sheets, and other technical data in our Resources Library.

icon5.pngCapacity Calculator icon6.pngResources
